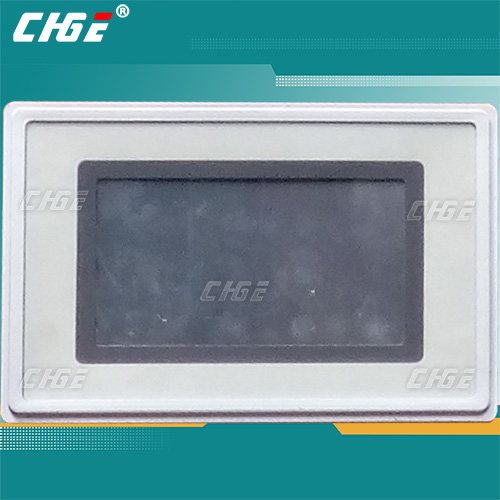

TEMI580温湿度可程式控制器
该产品采用计算机技术、先进的PID控制方法对环境温度、湿度进行测量和控制。
■显示和控制界面清晰直观，触摸屏、轻触式选择菜单，简单易用，性能稳定可靠。
■程序控制灵活，性价比高。
TEMI580温湿度可程式控制器，TEMI580,温湿度控制器,可程式温湿度控制器一般多用于恒温恒湿试验箱，高低温交变湿热试验箱，高温高湿试验箱，潮湿试验箱，霉菌试验箱，双85试验箱，恒温恒湿槽等环境试验设备中，触摸式可编程，且显示画面简洁明了，操作使用方便，容易理解。
技术指标：
1. 5吋彩色触摸屏；
2. 两种控制方式(定值/程式)
3. 传感器类型：PT100传感器(可选电子传感器)
4.报警信号：4个DI外部故障报警；
5.温度测量范围：-90.00℃--200.00℃，（-90.00℃—300.00℃可定制）误差±0.2℃；
6.湿度测量范围：1.0%--100%RH，误差±1%RH（此型号可增加湿度控制）；
7.界面语言类型：中文/英文；
8.具备汉字输入功能；
9.多种信号组合继电器输出，信号可进行逻辑运算（NOT,AND,OR,NOR,XOR），简称PLC编程能力；
10. 通讯接口：（RS232/RS485，通讯最长距离1.2km[光纤可达30km])，可连接打印机打印温湿度曲线监控数据；
11.程式编辑：可编10组程式，每组程式最大可编12段；
规格：
外型尺寸：180×120×100(mm) (长×宽×深)
安装开孔尺寸：170×110(mm) (长×宽)
TFT分辨率：480×272
TEMPERATURE .HUMIDITY PROGRAMMABLE CONTROLLER，TEMI580,温湿度控制器,可程式温湿度控制器
1. Safety Guide
1.1 Regarding the production Quality Assurance.
(1)The guaranteed period of the production quality assurance is one year after end user buy it and it will be free to fix defected product under regular usage described.
(2)It will be charged to fix defected product after warranty period . This charge will announced by our actual cost to be calculated during the fixing time.
(3)It will be charging even if within warranty period as following events.
(3.1)Defect by operator and user’s default. (forget password,production initialize )
(3.2)Natural disaster.(fire,water flow etc)
(3.3)Additional shift after 1st installed.
(3.4)Improperly repaired, or altered ,modified in anyway.
(3.5)Power failure in unstable power condition.
(4)Feel free to contact our sales office whenever it need to make A/S.
1.2 Environmental precautions for installation
(1)Be sure to operate the controller installed on a panel to prevent electric shock .
(2)To install the controller, do select a location where;
■No one may accidentally touch terminal .
■Mechanical vibrations are minimal.
■No corrosive gas is prevent.
■Temperature fluctuation is minimal.
■Temperature can be maintained. (50℃ below/10℃ cover).
■No direct heat radiation is present.
■No magnetic disturbances are caused.
■No water is splashed.
■No flammable materials are ground.
■No wind blows.(Prevent dust with salt)
■No ultraviolet rays are present.
■If the equipment is used in a manner not specified by the manufacture,the protection provided by the equipment may be impaired.
■A switch or circuit-breaker acting as the disconnect device shall be included in the application or the building installation.
1.3 Precautions of Controller Mounting
■Keep the input circuit wiring as far as possible away from power and ground circuit.
■Keep the controllers in 10℃～50℃/20%～90%RH,Warming up needed to use controller when temperature is below 10℃ in advance.
■Do not mount front panel facing to downward.
■To prevent electric shock ,be sure to turn off and the source circuit breaker before wiring .
■The power consumptions are 100-240VAC,50/60Hz,15VAmax and operate without power switching in advance.
■No work in wet hands(it caused electric shock)
|
